General Information

Engine:

• Cummins Inboard
• Fuel Type: Diesel
• Hours: 2000
• Drive Type: Shaft Drive
• Power: 335 hp

Dimensions:

• LOA: 21 m 60 cm
• Beam: 6 m
• Max Draft: 3 m 30 cm

Weights:

• Ballast: 10,200 kg
• Displacement: 35,000 kg

Speed:

• Cruising Speed: 10 kn
• Max Speed: 12 kn

Tanks:

• Fuel: 1,500 l
• Fresh Water: 1,000 l
• Holding: 80 l

Accommodation

• Single Berths: 8
• Cabins: 4
• Heads: 4

Engines & Tankage

Engine & Gearboxes:

• Cummins professional working engine turbo intercooler (INT intermittent engine, for fishing boat, which is completely different from pleasure engines). No electronics. Hours 2,000 in 15 years - completely overhauled at 1,600 hours. New exhaust raiser 2021 – 335 horse power - speed max 12.5kt, low range speed 9.5 kt, cruise range 10kt.
• ZF oversize hydraulic gearboxes.
• Oversize Aquadrive mating between shaft and engine with PSS water tight.
• Fire extinguisher to engine room.
• Engine room has special high-speed train insulation rubber and wood, including special material for anti- vibration and sound in engine bilge. Outside there is no noise at all and you should check the RPM to understand that the engine is running.
• Double Racor filters for water separation. One Racor for filtering fuel between main tank to daily tank, and automatic shut off for petrol to the engine.
• 2 x Automatic bilge pumps in engine room.

Tankage:

Fuel:

• Total fuel capacity of 1,500 litres

Fresh water:

• Total water capacity 1,000 litres.

Grey/Blackwater Holding Tanks:

• Greywater capacity of 170 litres. - 2x Grey Tanks with macerators
• Blackwater capacity of 200 litres. - 2x Black Tanks with macerators

Propulsion & Steering

Propulsion & Steering:

• Bruntons Varifold 4 blades fixed propeller.
• Hydraulics Max-Power 300 retractable bow thruster - 25 KW.

Cariboni Electro-Hydraulic Control Unit:

• Electro-hydraulic control for mainsail furler, bow thruster, furling jib, stern garage.
• 3 x Hydraulic pumps.
• Hydraulic garage door.
• Hydraulic PTO on generator
• Navteck classical 5 way input control units - manual and electric (back stay – genoa halyard – under deck piston for tensioning genoa furler – stay sail under deck piston – vang double effect piston up and down.
• PLC automatic control of the entire hydraulic system, and for furling angle of the vang which it will place in position automatically before furling starts.
• Fast vang release on gibe.
• Buttons on steering consoles both sides to control furling main, furling genoa, vang control up and down.

Cariboni Manual Hydraulic Controls:

• Cariboni 2-speed/5 ways.
• Halyard cylinders.
• Staysail tensioning cylinders.
• Furling tensioning cylinders.
• Dual-action vang for automatic mainsail angle tensioning.

Ancillary Equipment

Fresh Water & Water Heating System:

• 1 x Water-heater 80l 2000w connected also with engine.
• 2 x Fresh water pumps by Gianneschi automatically switched every 4 hours.
• 2 x Salt water pumps by Gianneschi automatically switched every 4 hours.
• Direct connection from shore with pressure reducer.

Watermaker:

• One 24V desalinator by Shenker 150 l hour - 2019 new.
• One 220 desalinato HP 400 l hour - new 2021.

Bilge Pumps:

• 2 x Bilge pumps in each bilge compartments automatically driven in total 10.
•  1 x Manual “Monster” bilge pumps located in keel bilge.
• Emergency aspiration by engine from bilges.

Heating & Ventilation:

• Condaria 72,000 BTU aircon with digital thermostats in every room. Cold and heating.
• Extra heating water heater for very cold climate (north pole) with 8.000w heating power.
•  8 x Fans with thermostats in each cabin and saloon.

Fare Locker Housing:

• Compressed air intake.
• Hot/cold and fresh and salt-water shower.
• Winch and windlass.

Electrical Equipment

Voltage Systems and Shore Power:

• Shorepower converter transformer automatically 110v in 220 to run all systems (American equipment).
•  220/110 shower power stabilizer transformer.
• 220V equipment.
• 24V power for services.

Battery Banks:

• 32 x 6V batteries for servicing a total 1,600 amps (2020).
• Emergency battery to service SSB and VHF, placed on higher sea level.
• 4x24VEngine and generator starting batteries.

Battery Chargers:

• 5 x Mastervolt (3x100A – 1x50A --1x30A) Battery Chargers.
• Inverter 5000W Mastervolt

Anternators:

• 1 x Alternator per engine.
• 1 x 130A alternator for services (plus one spare).

Generator:

• 1 x Onan generator, 17.5Kw with PTO.
• Maintenance completely 1,600 hours. Yearly maintenance.
  Total hours now circa 2000.
• New raisers etc. 2021.

Other Electrical:

• Scuba compressor charging 6 bottles at a time.
• Air compressor 50l tank in garage/anchor locker/engine room.

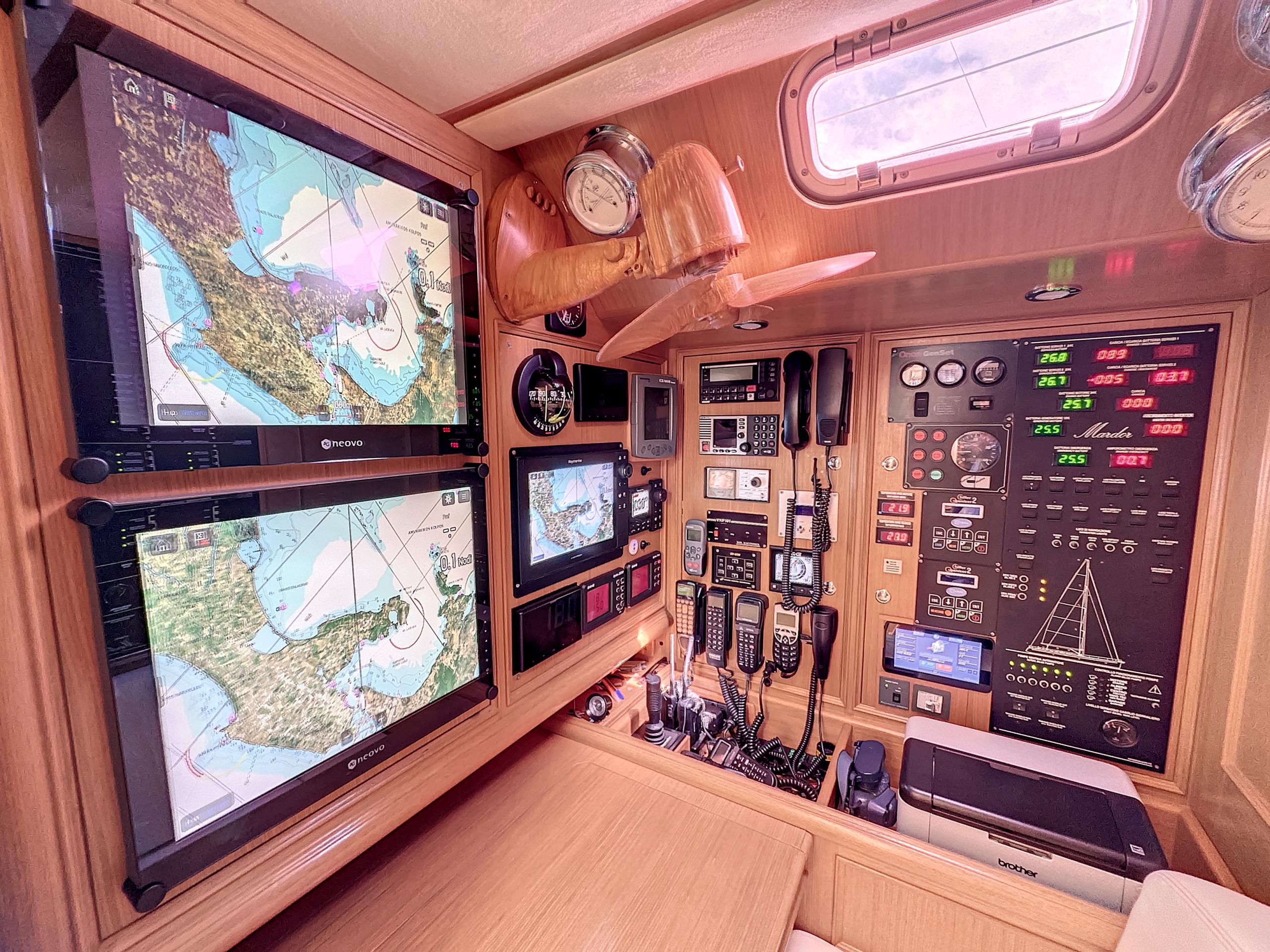

Navigation & Communication Equipment

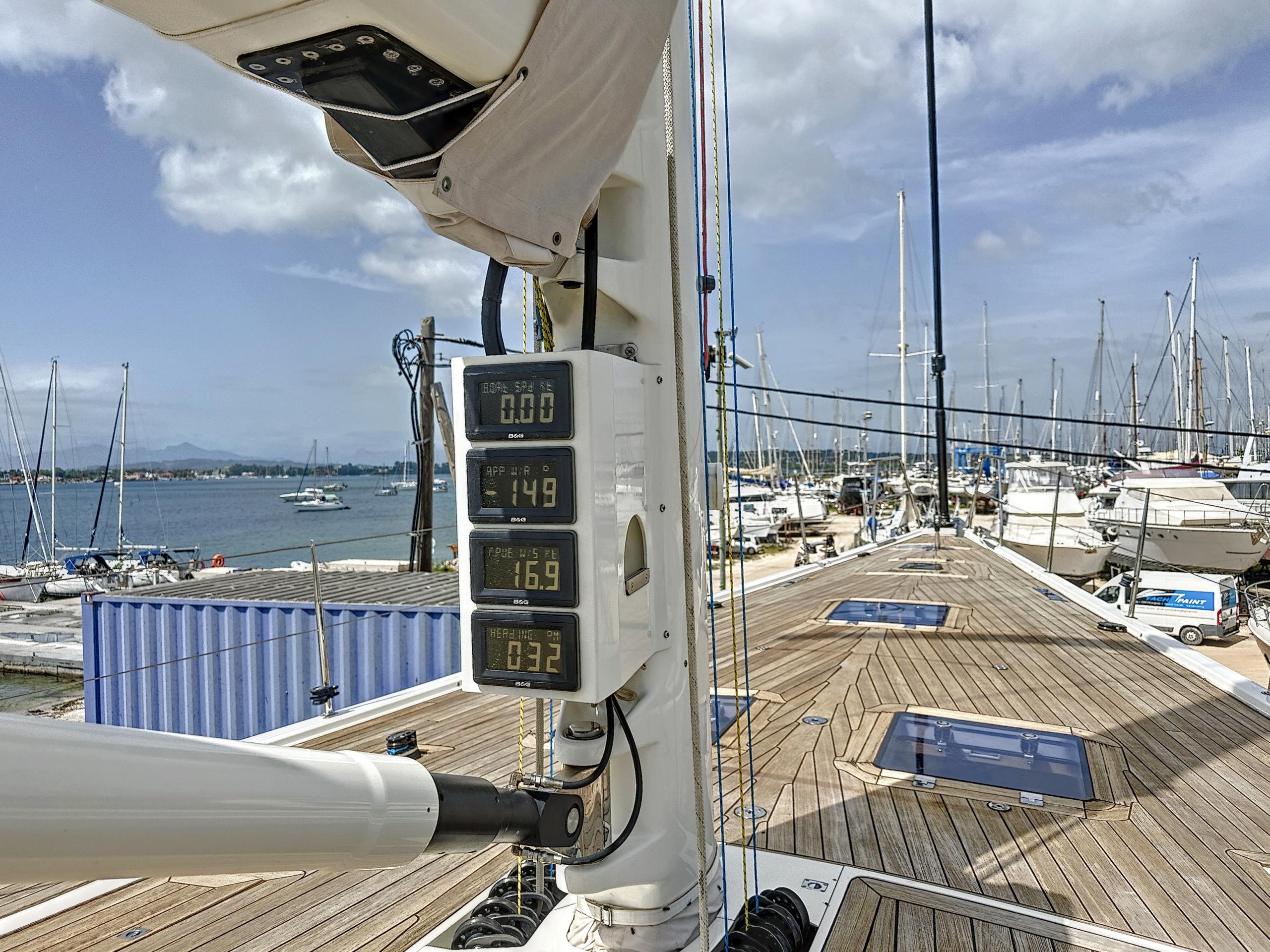

• B&G Hercules Race - with 8 x 20-20 jumbo LCDs and 7 FFD LCDs (2 x in cockpit and 5 x below decks – in each cabin, the saloon and at nav. station).
• B&G autopilot with gyrocompass – with remote control from: steering, nav. station and saloon.
• Raymarine autopilot with gyrocompass – with remote control from steering, nav. station and saloon.
• Marsili hydraulic steering with electronic rudder and pilot dampenings for efficient routing.
• 2 x Independent Raymarine AXIOM 12 plotters in the cockpit.
• 2 x Repeaters for external plotters with two monitors and keyboard (1 x in saloon, 2 x at nav. station).
•  1 x Raymarine 2019 AXIOM 12 plotter at nav. station, controlled independently from others.
• 2 x Independent 2019 AXIOM7/9 plotters with integrated antenna in owner's cabin.
• 2 x A2019 XIOM 7 plotters in the central cockpit.
• 8 x Jumbo FFD display connected with Raymarine wind station.
• Sailor VHF with 100W signal amplifier plus external handset. Simrad VHF with 3 external handsets and intercoms.
• 2 x Independent antennas.
• Sailor250 Watt SSB.
• GSM mobile phone with amplifier and antenna at masthead.
• Sailor Iridium satellite phone.
• Sailor Fleet 33 satellite phone.
• Furuno Navtex - ICS 6 LCD with black box and independent antenna to download forecasts and weather maps to a computer.
• Computer with 18" screen and printer.
• GSM transmitter for fax.

Antennas:

• 2 x GPS antennas.
• 2 x VHF antennas.
• 1 x GSM antenna.
• 1 x 60cm satellite TV antenna.
• 1 x Analog TV antenna.
• FM/AM antenna.
• 2 x Navtex antennas.
• Iridium satellite antenna.
• Fleet33 satellite phone antenna

Domestic Equipment

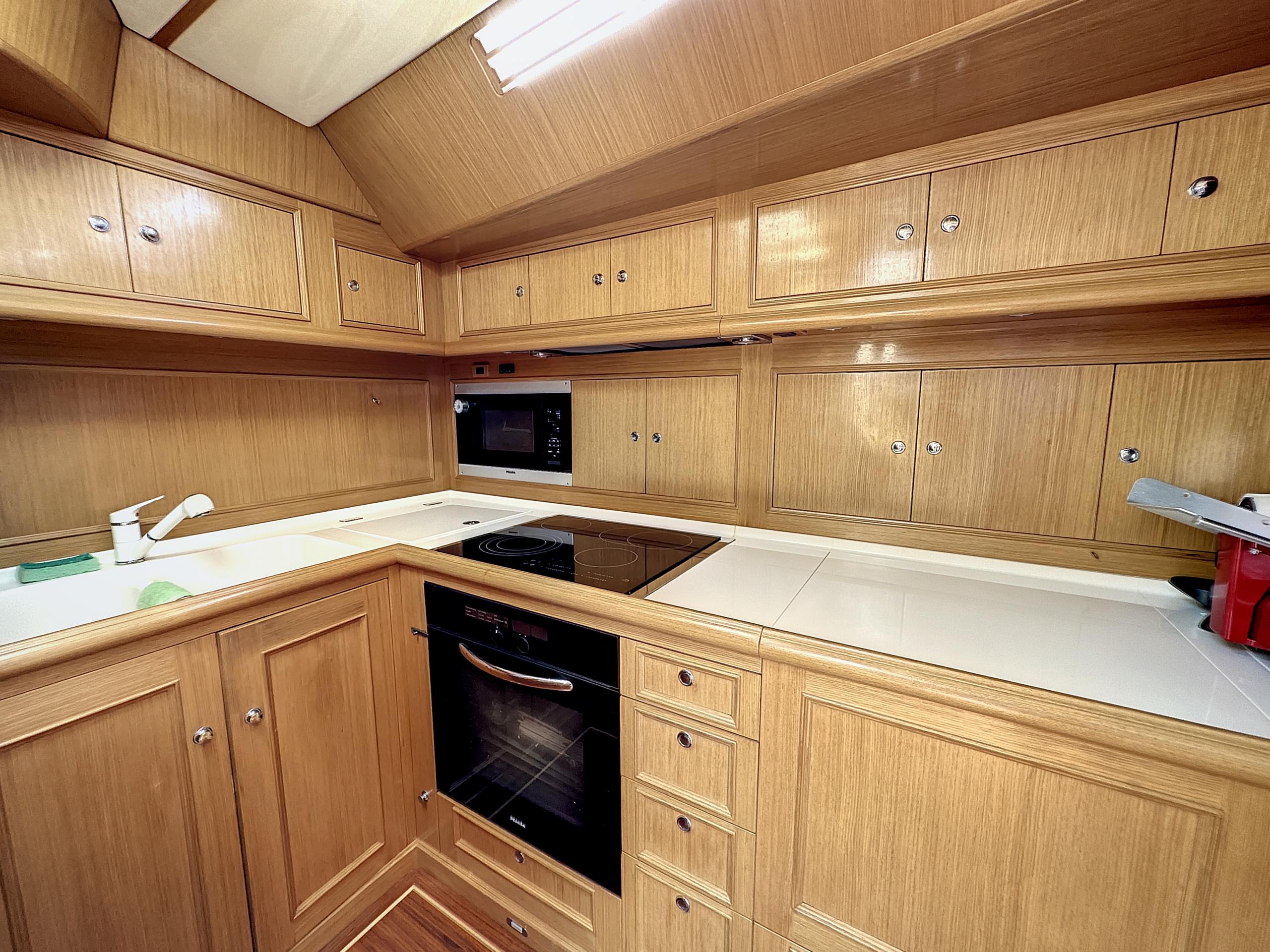

Galley:

• 4 x Frigomar fridge.
• Indel Webasto 233lt freezer.
• Miele freezer with drawers.
• Miele washer dryer.
• Industrial Miele dishwasher, washing in 15 minutes.
• Miele ceramic hob.
• Miele oven.
• Miele microwave.
• Miele extractor hood.
• Gimballed gas cooker with enclosed Alpes Inox recessed stove/oven. White Corian worktops
• Double Corian sinks with fresh and salt water
• In sink macerator

Cockpit:

• Fridge in cockpit

Heads/Showers:

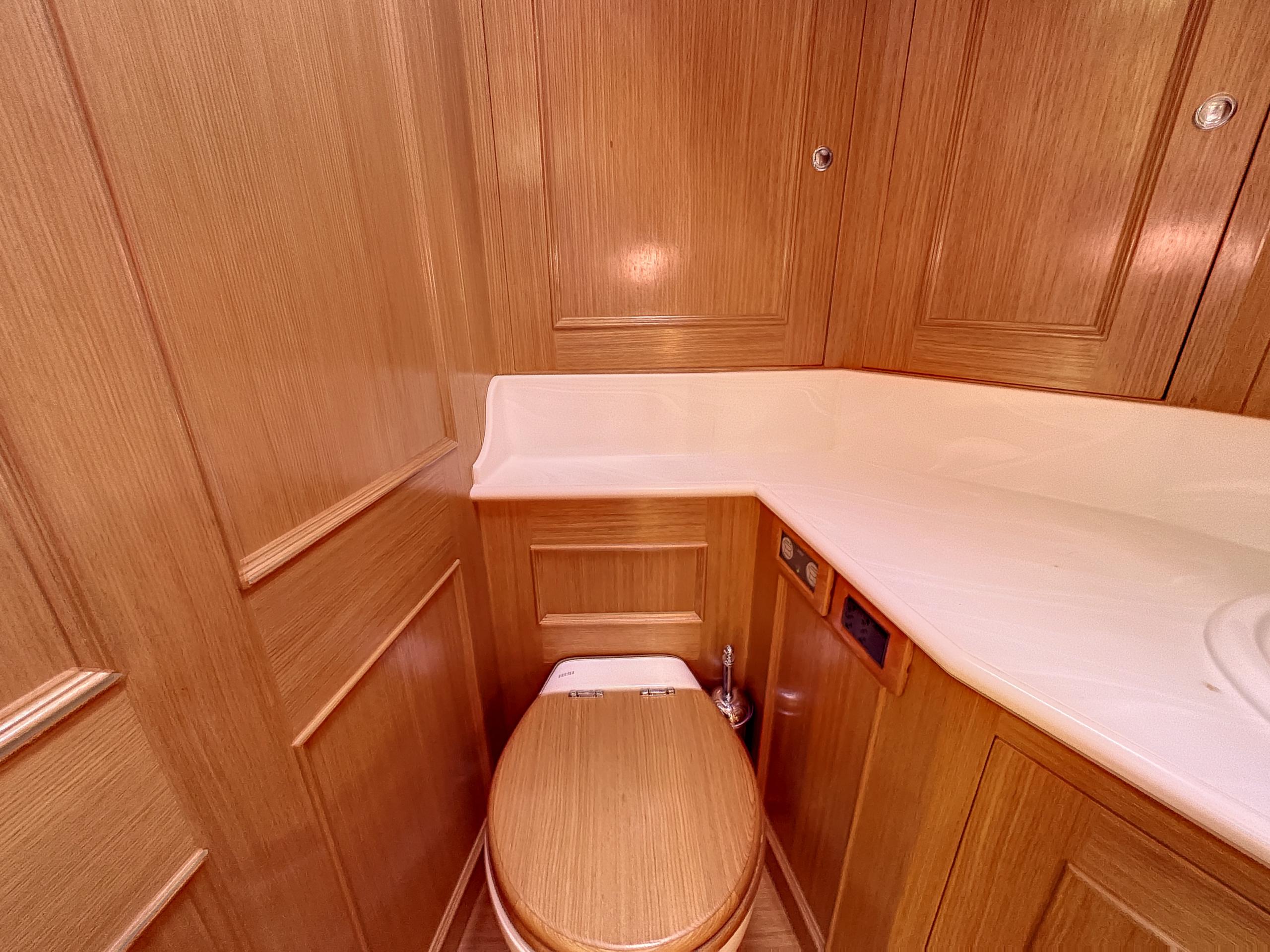

• Tecma electric fresh water flush toilets.
• Devon & Devon ceramics and tabs

Entertainment:

• Retractable Sony 32" LCD TV.
• 20" TV in all cabins and galley.
• Portable 15" TV for cockpit.
• CD-DVD players.
• High quality 220V Hi-Fi system.
• Centralised stereo system.
• 1 x Seatel 65cm satellite dish.
• 1 x Additional Navionics analogue TV antenna.
• Various Video VHF and CD recorders.
• Sky decoder in all rooms.
• Satellite decoder in each room and saloon.

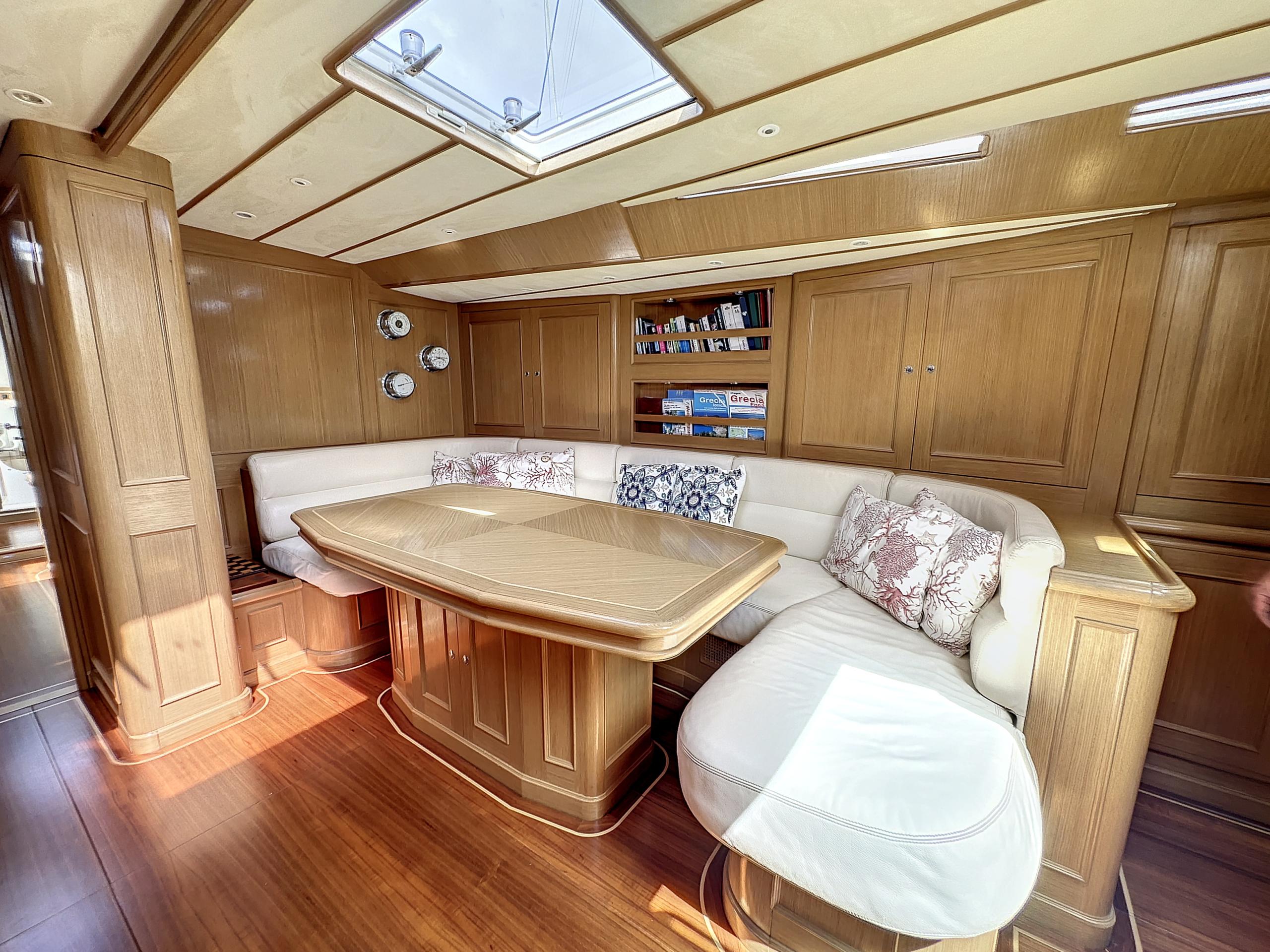

Saloon

• Dining table for 10 people.
• TV, bookcases etc.

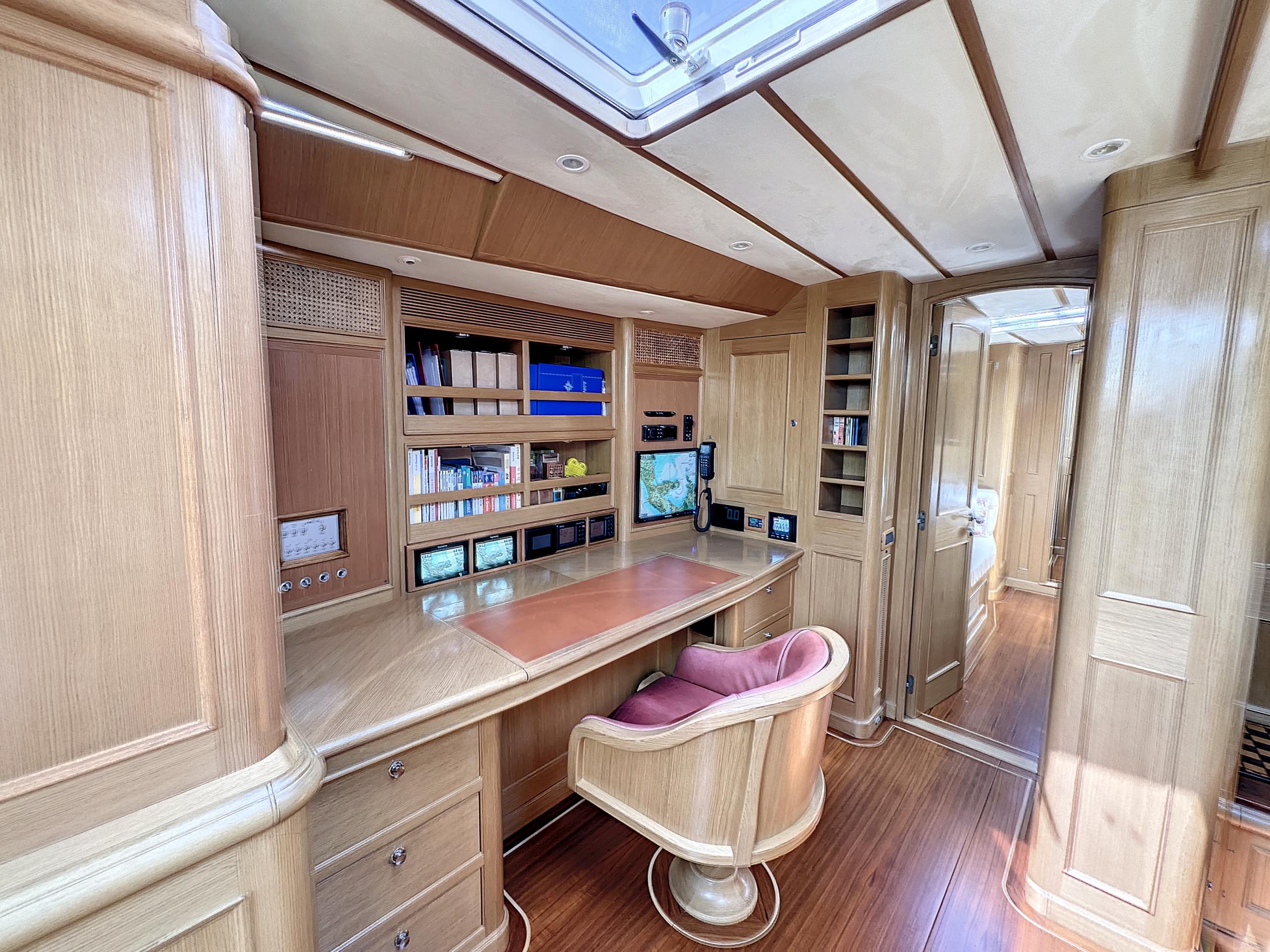

• Desk for workstation with leather armchair plug internet connection.
• Large “U-shaped sofa in ivory leather.

Accommodations

• Teak natural skin wax finish.
• New floors in teak.

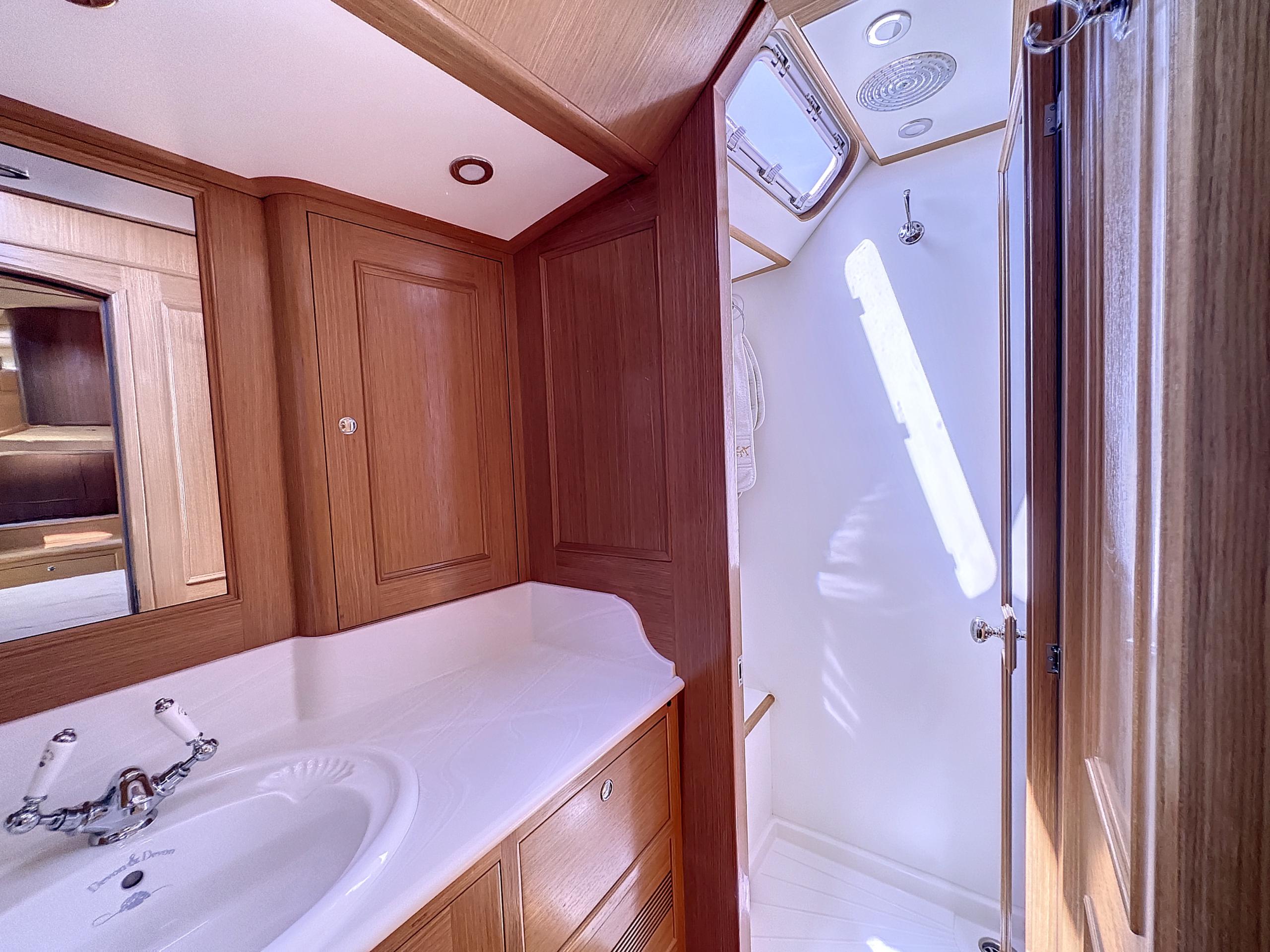

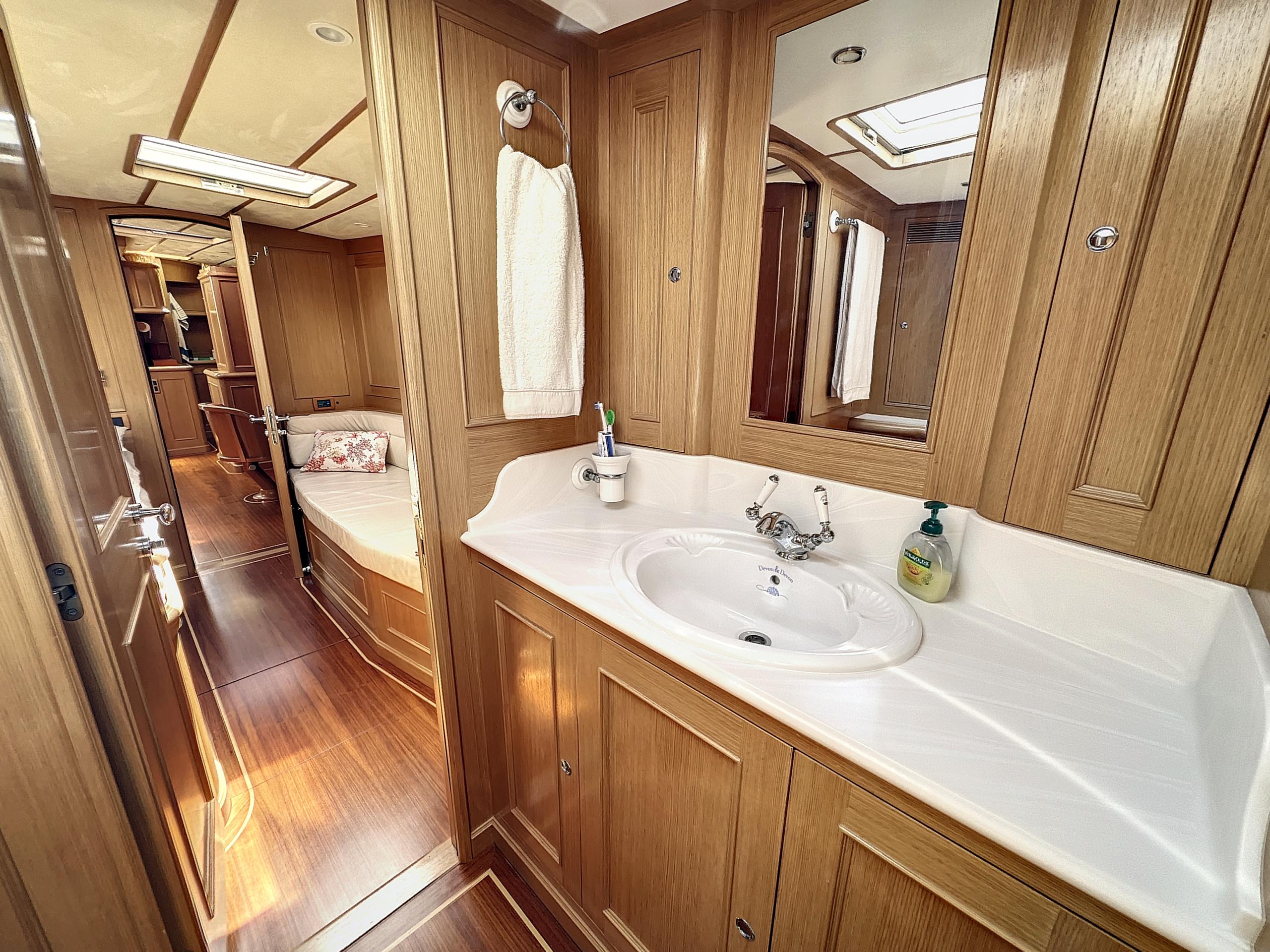

• Master cabin with their bathroom and separate shower box.
• One guest cabin, with bathroom and shower.
• There is a dedicated crew cabin at the bow with its sink and WC. This room can be used as a crew cabin, or sail locker and one crew cabin with WC and sink; a watertight door divided the bow master cabin shower with crew cabin room.
• Very large dining room with TV.
• Kitchen.
• Very large chart table cabin.
• One large accessible engine room - stand up height.
• Second engine room dedicated exclusively to the engine.
• A very large garage with washing/dryer machine.

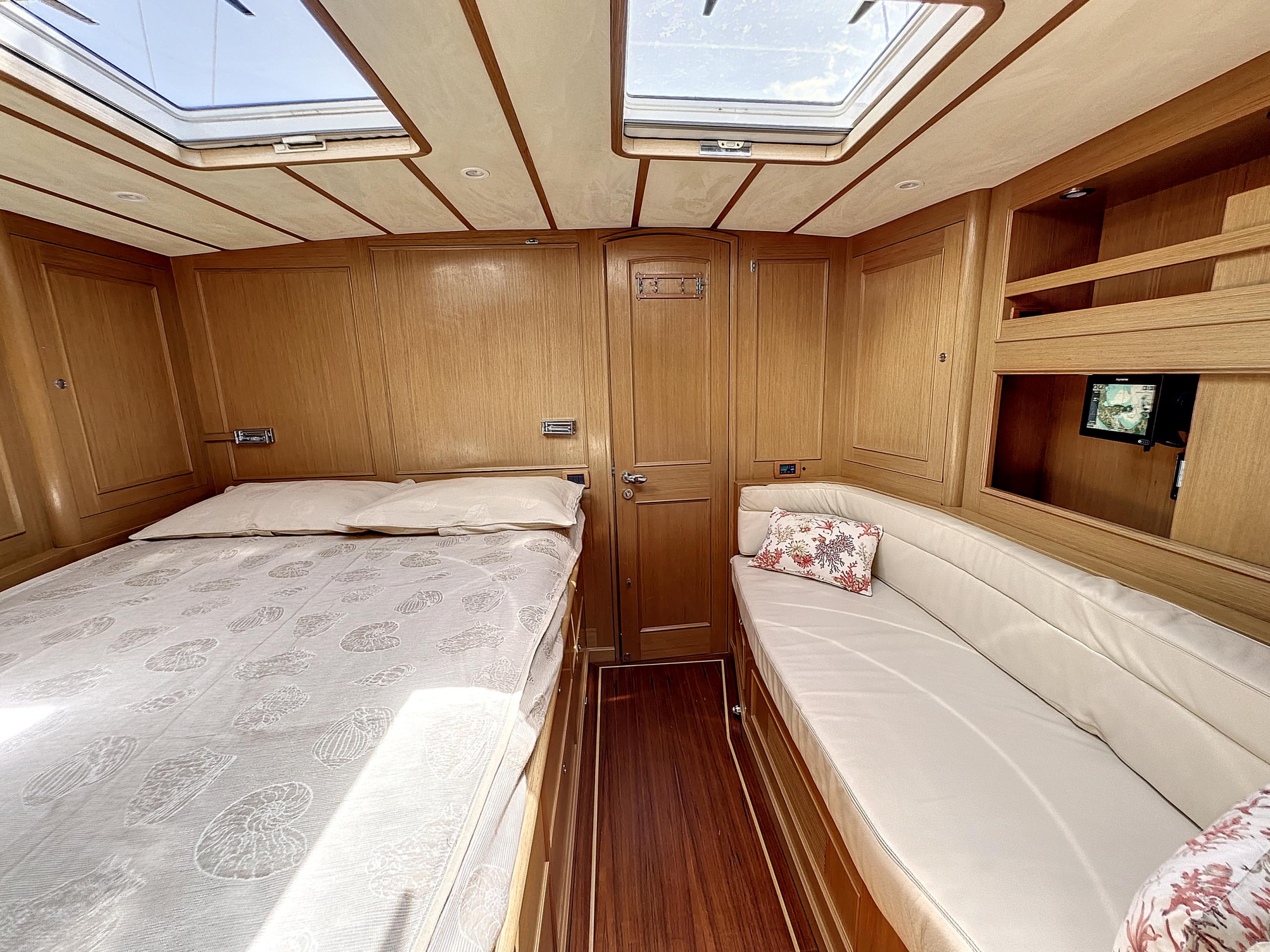

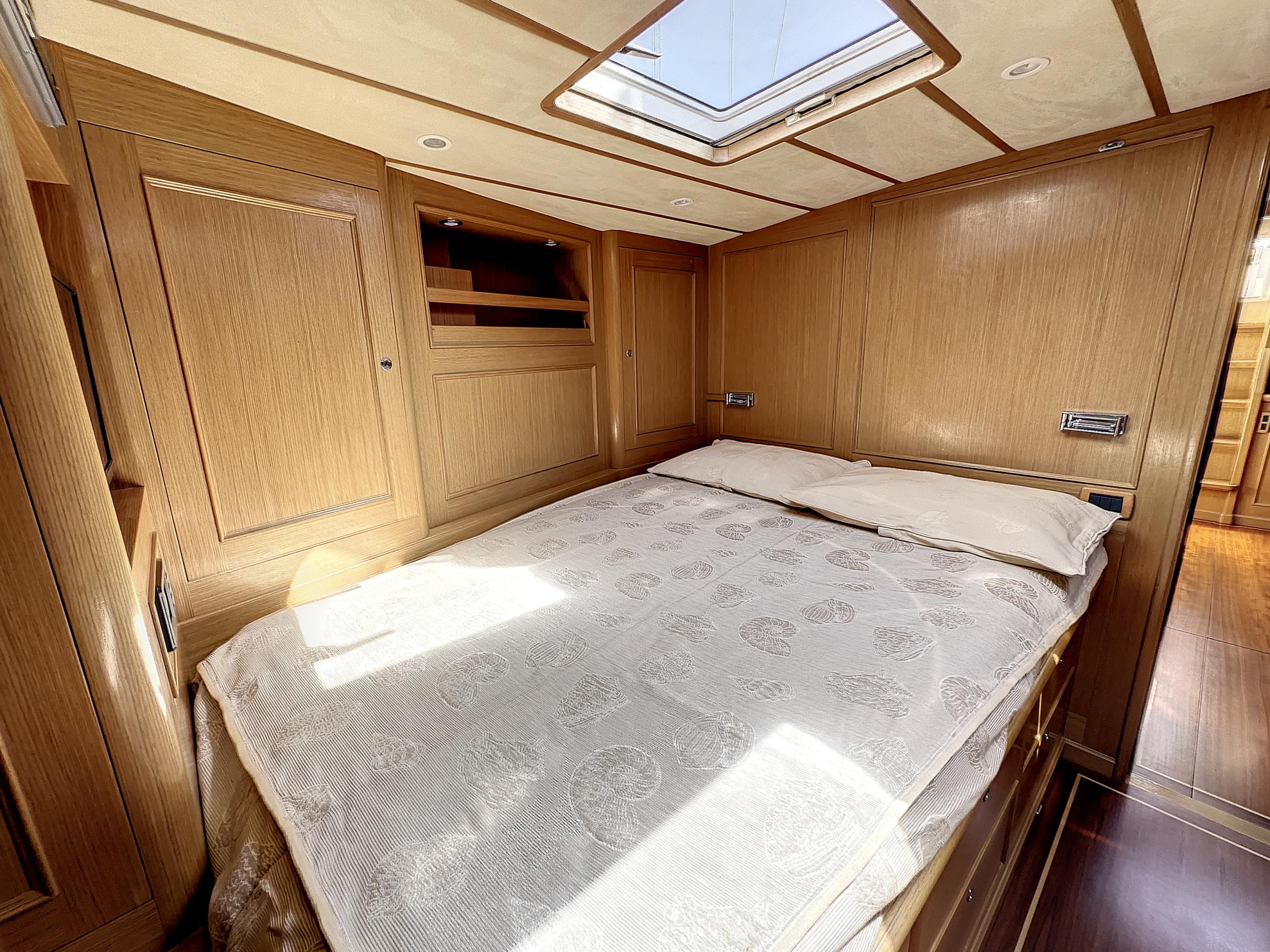

Full Width Guest Cabin:

• Port side seating.
• Double berth to starboard.
• En-suite heads forward.
• Hanging lockers to port and starboard.

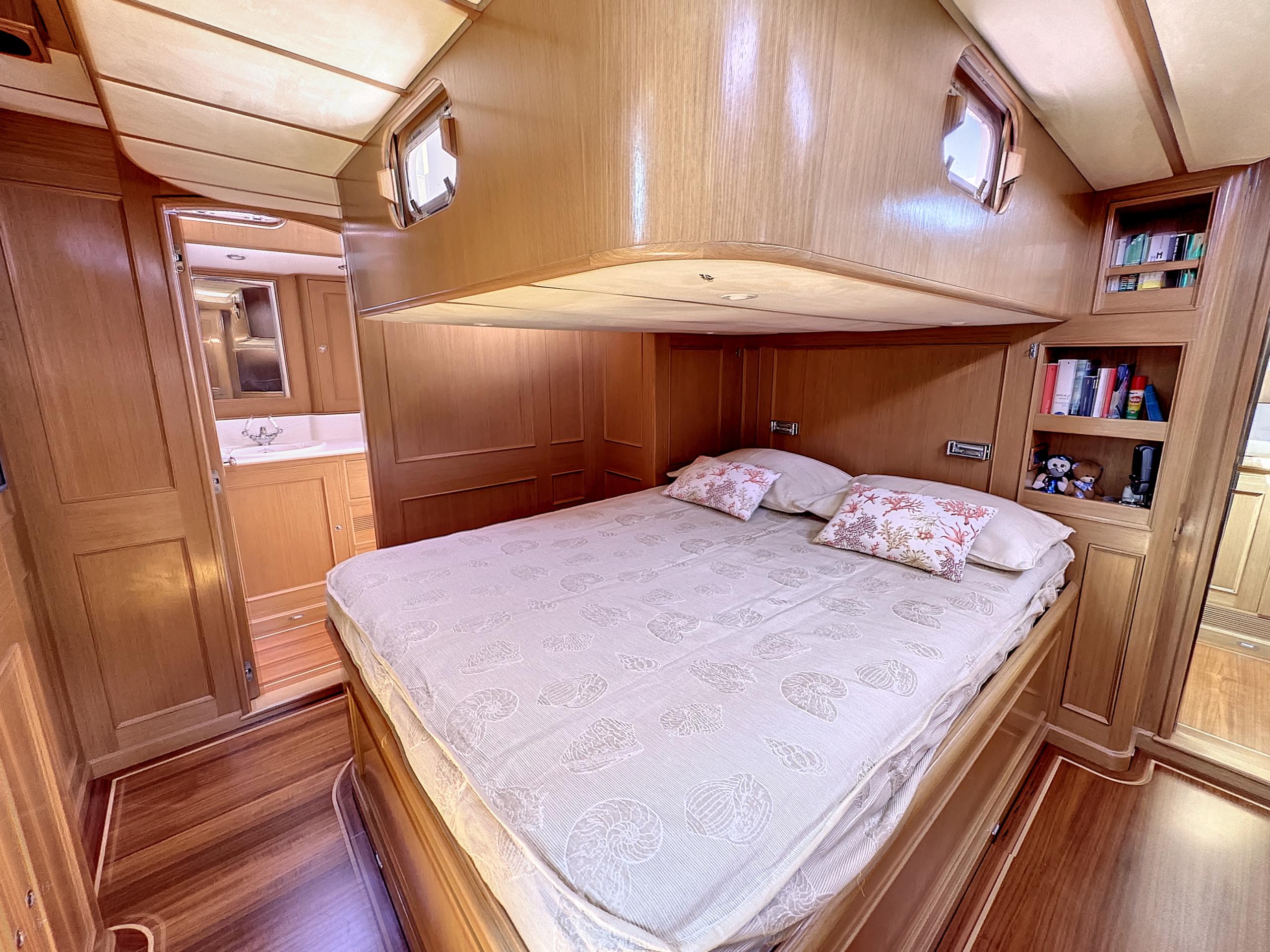

Master Cabin:

• Full beam with central double bed
• Bathroom with separate shower
• Second Nav. Station to right

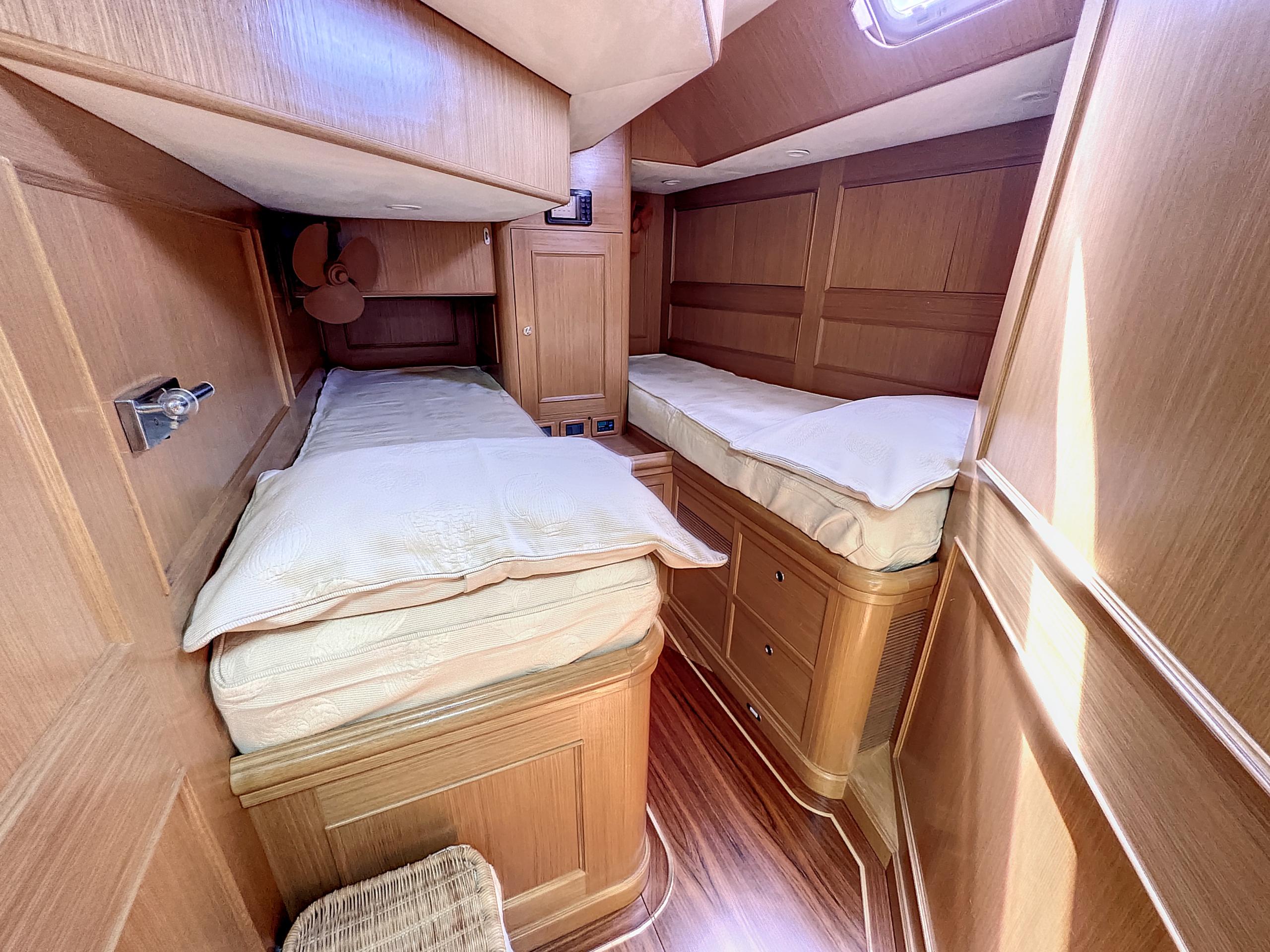

Port Guest Cabin:

• 2x Single berths and en-suite head & shower

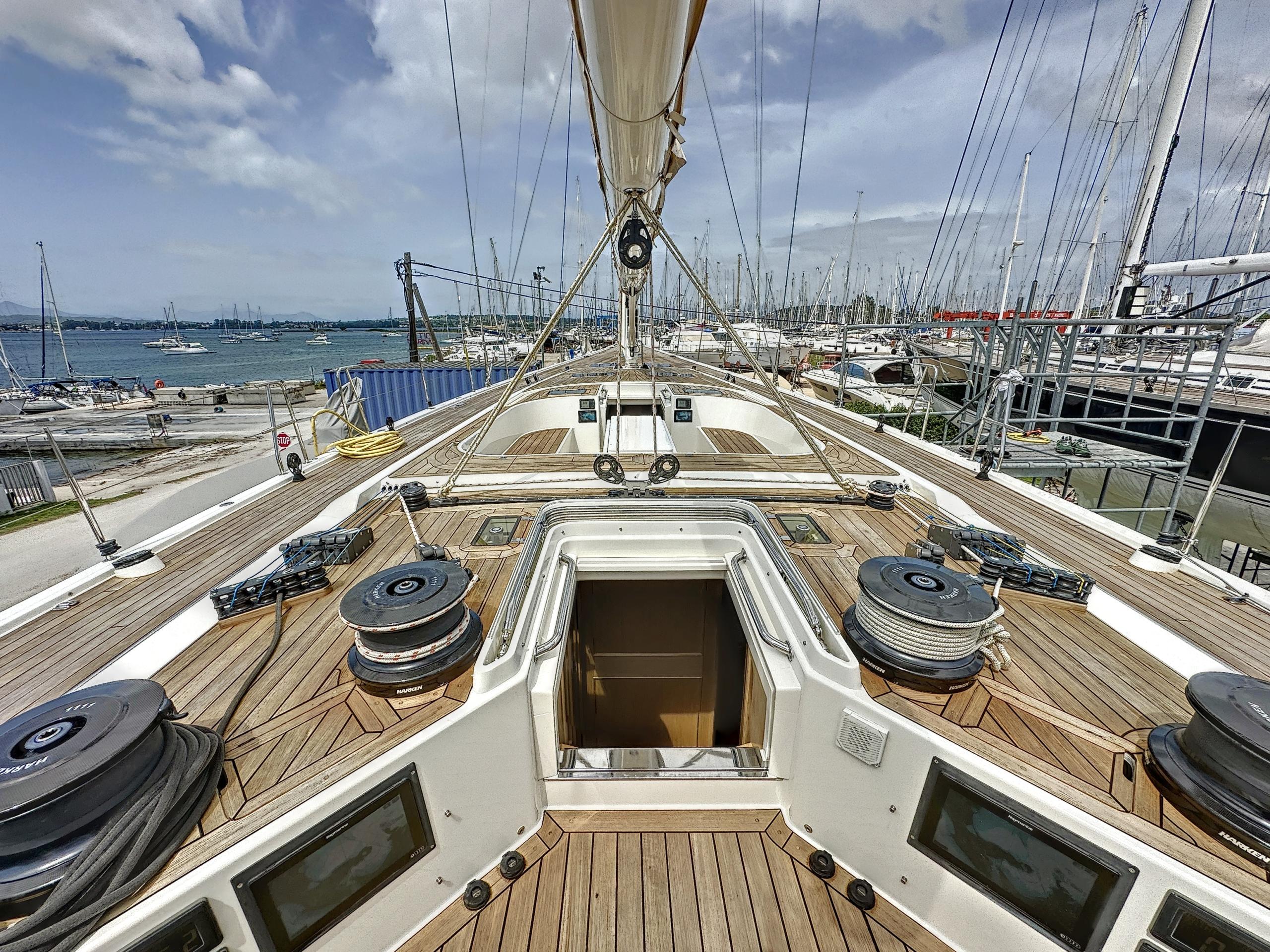

Deck Equipment

• All deck equipment by Harken & Spinlock

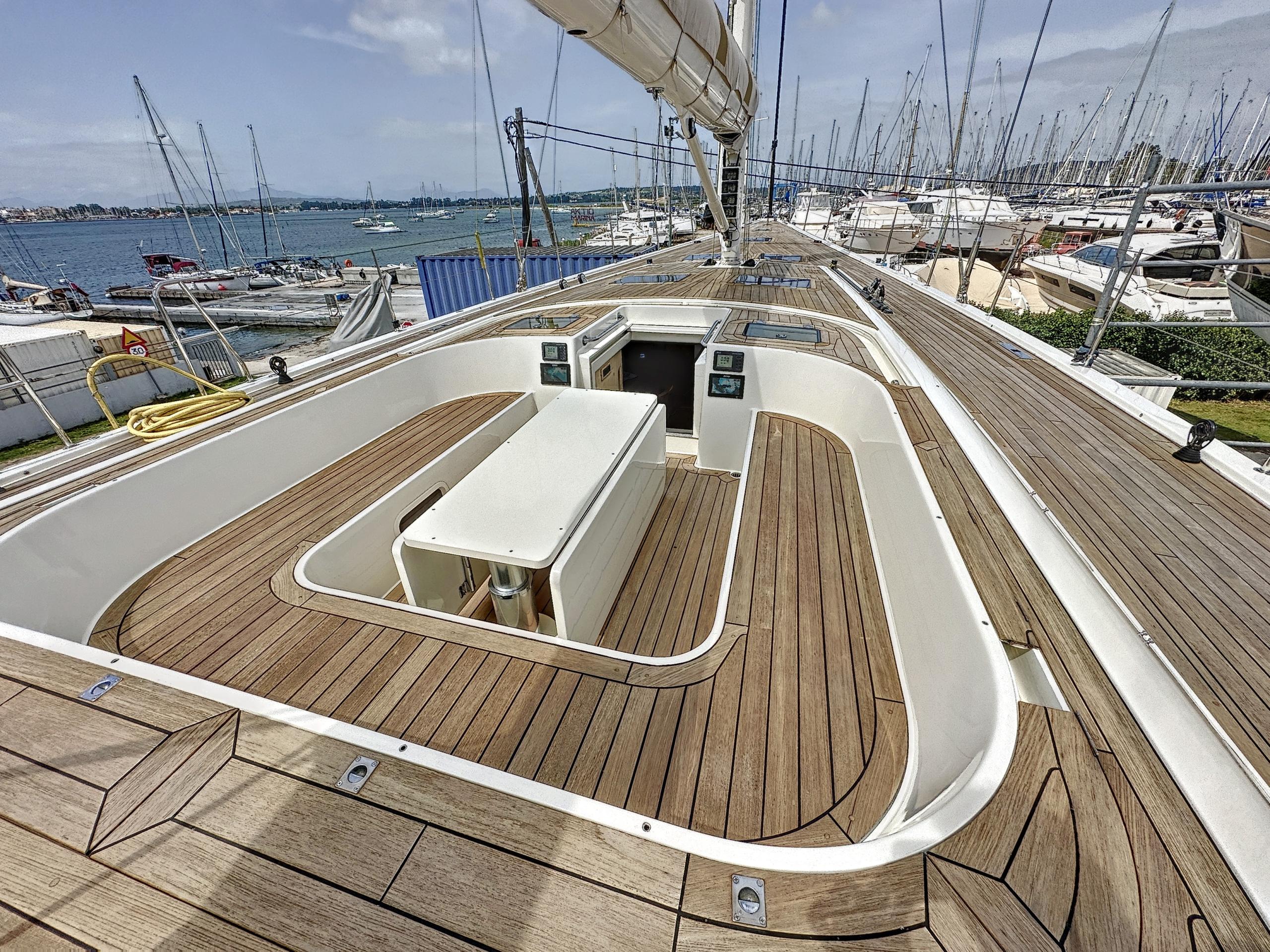

• Central cockpit with large U-shaped bench for 10 people
• Table with extension leaves mounted on electrical pistons up/down, adjustable to variable heights

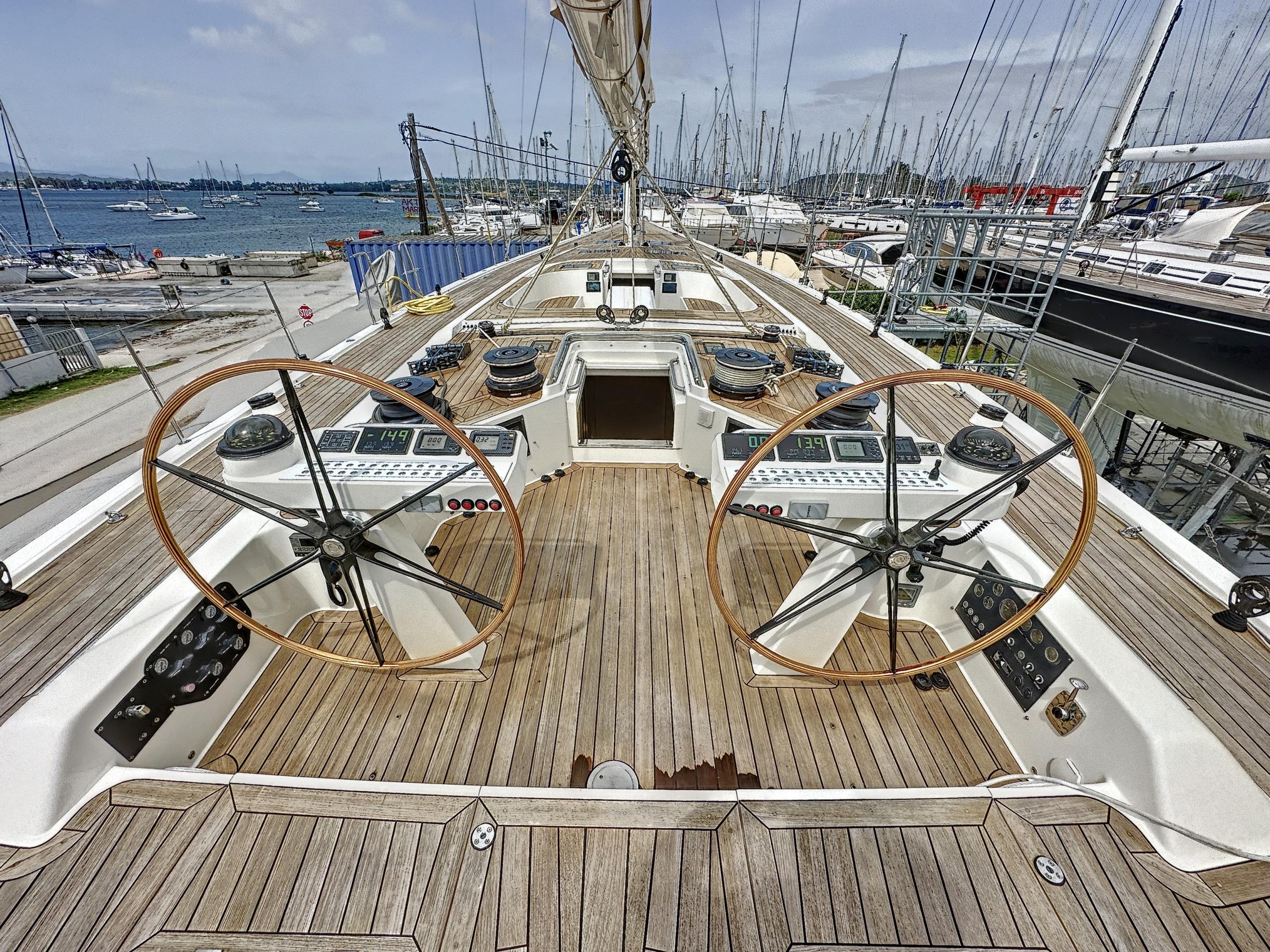

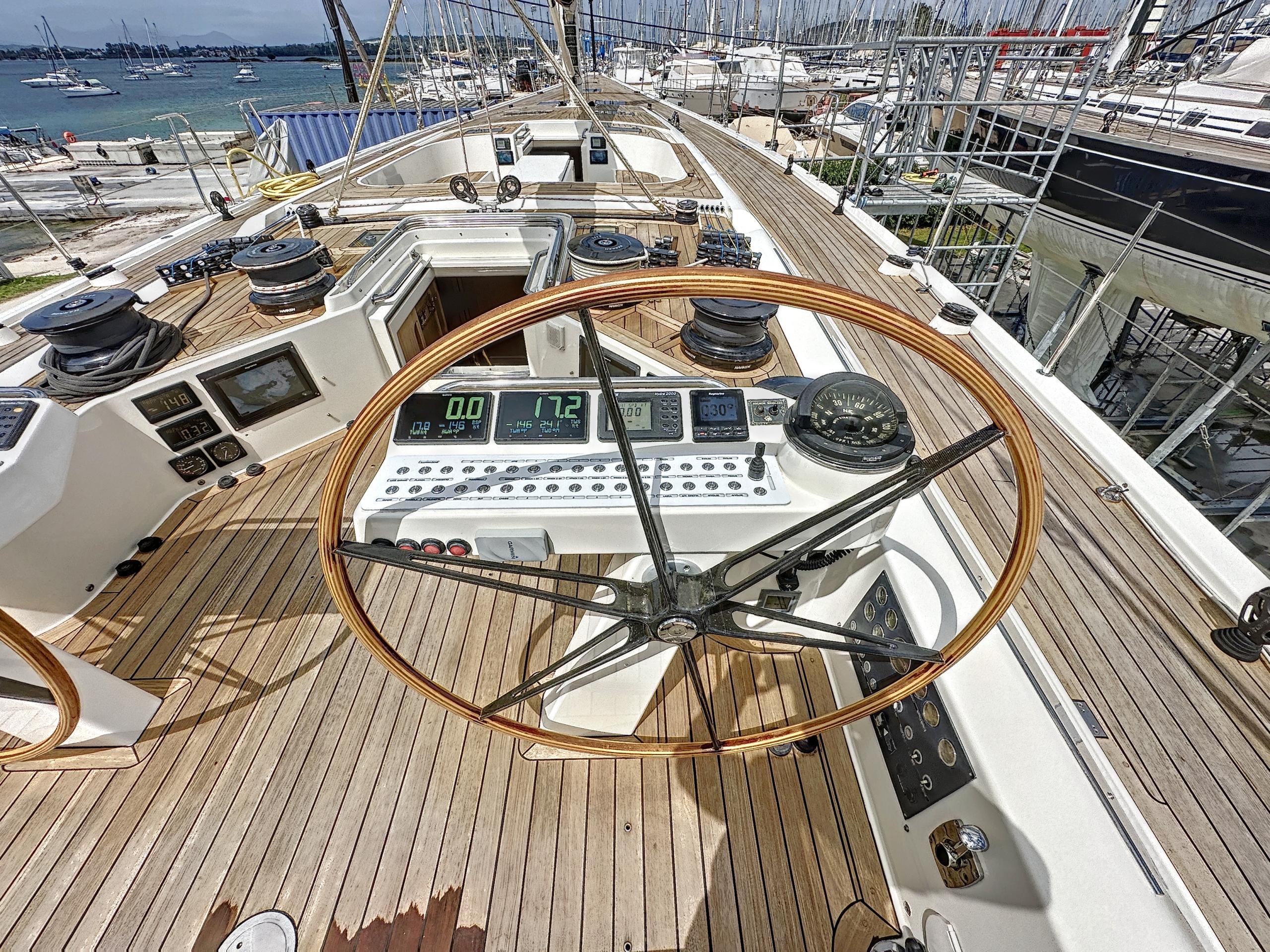

• 2x Carbon rudder wheels wood/carbon steering pedestals. With consoles for remote control of all manoeuvres including winches, hydraulic lights

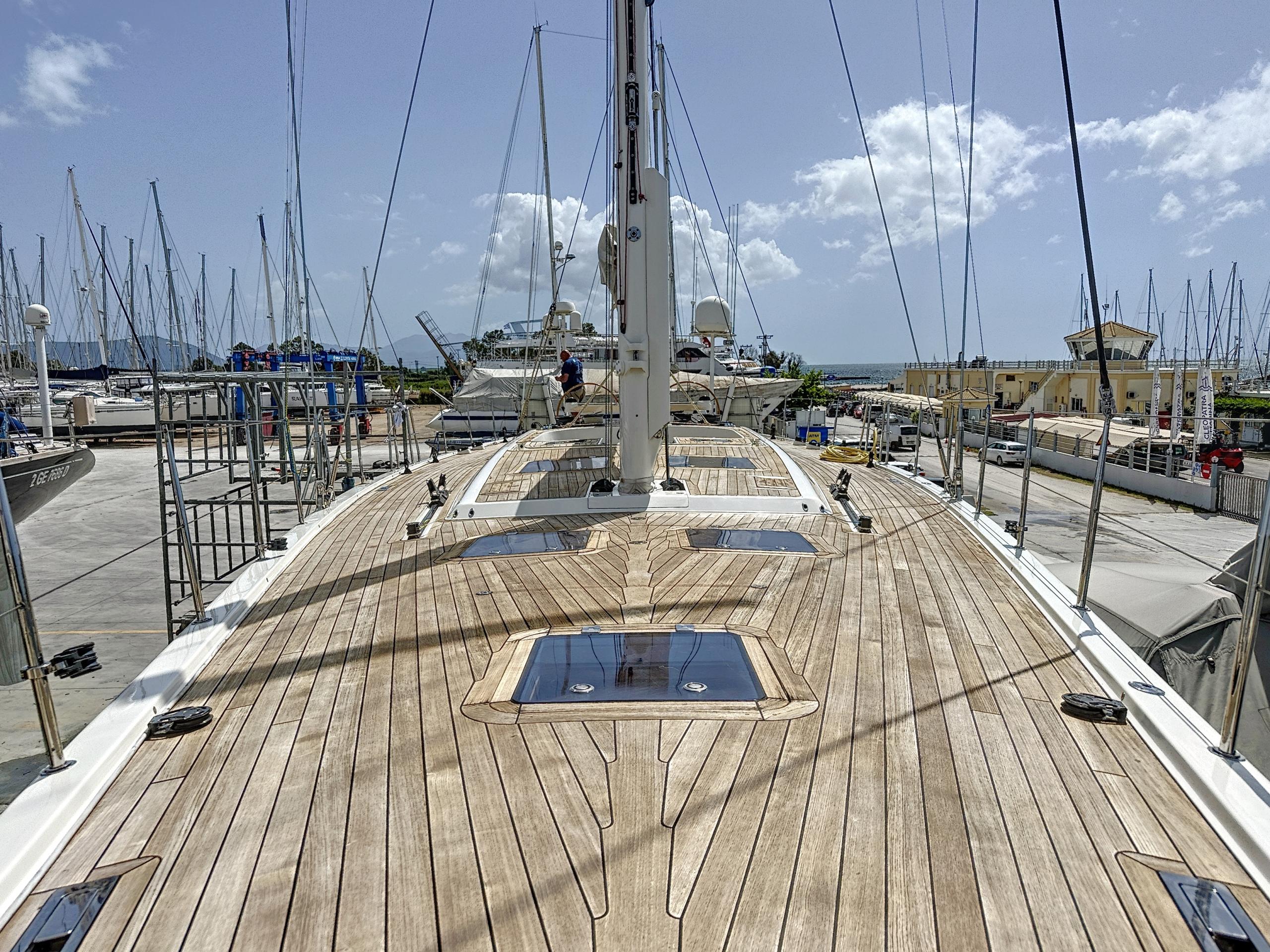

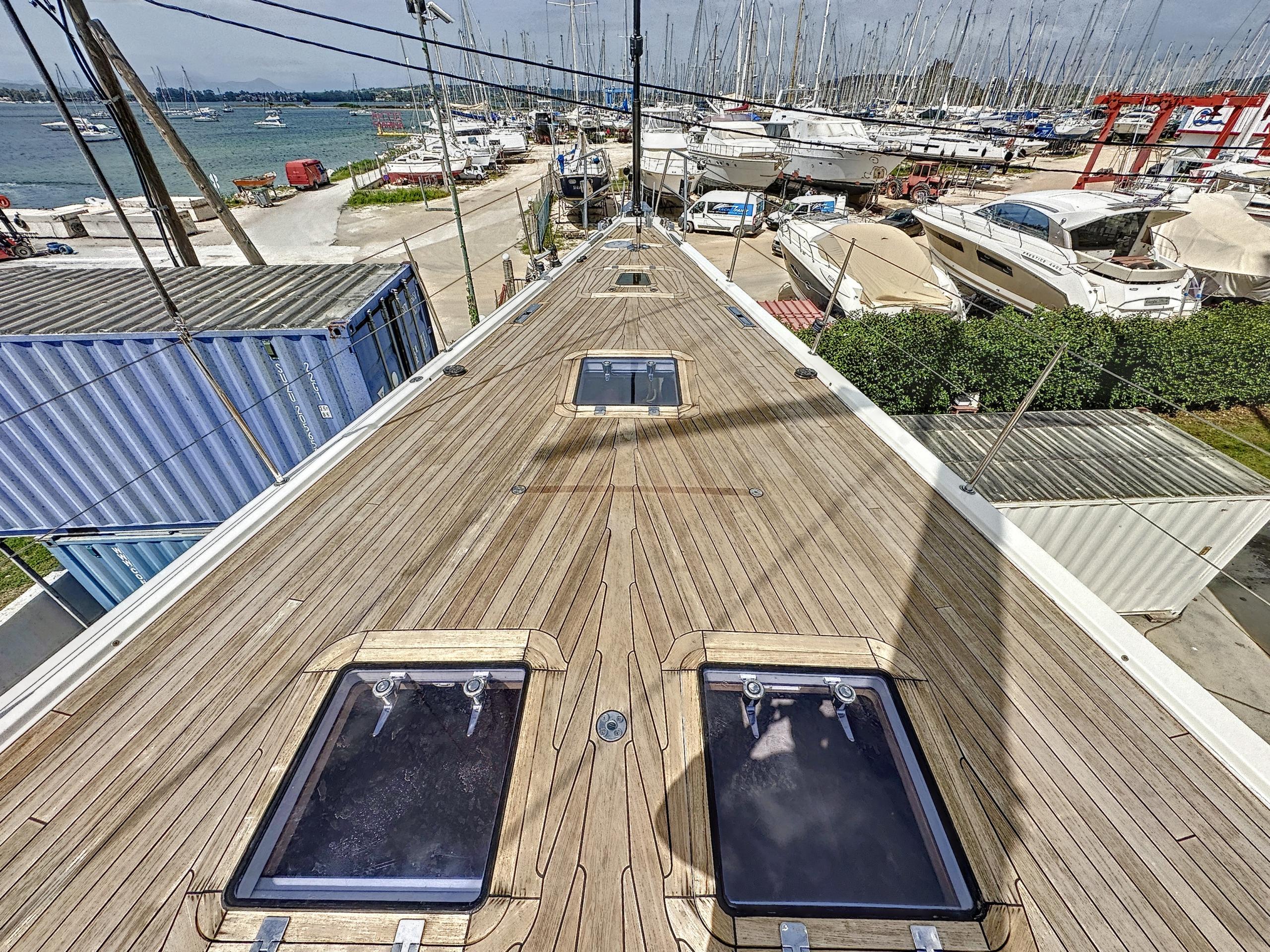

• Flush Solimar carbon deck hatches.
• Solimar with steel steps and automatic pilot release.
• Retractable hydraulic passarelle & crane.
• Garage with large aft hydraulically door. For storage of outboards and water toys. Gangway/crane ideal for lifting from garage.
• Aft sunbathing area with built-in teak platform. Removable carbon swim ladder.
  Cold salt-water shower on swim platform. Compressed air for inflatable toys.
• One container 20” spare parts.
• Sanguinetti 2000W retractable windlass.
• Lofrans 2,500 watt windlass with wireless remote control from cockpit and bow.
• CQR anchor 80kg with 160m of chain
• Various Bimini
• Sprayhood
• Front canopy - creates a closed and sheltered space in the event of adverse conditions Cushions for
• sunbathing area under boom
• AB aluminium cm 380 white
• Mercury 4 stroke
• All lighting dimmable
• Fiber optic lighting for cockpit and gunwales
• Spreader lights illuminating both up and down

Sails & Rigging

Rig:

• Carbon mast by Hallspar.
• Carbon boom with Marten hydraulic mainsail furler.
• Hook for staysail halyard.
• Double halyards spi/mainsail/genoa/staysail, all in Spectra. Double backstay with "PBO" terminals.
• Non-structural steering wheels.
• Navtek 800 rod rigging.
• 2 x Bolts for staysail (removable at mast to clear foredeck area). Second staysail and storm jib stay with piston.
• Hydraulic furling.
• Retractable carbon bowsprit for gennaker.

Winches:

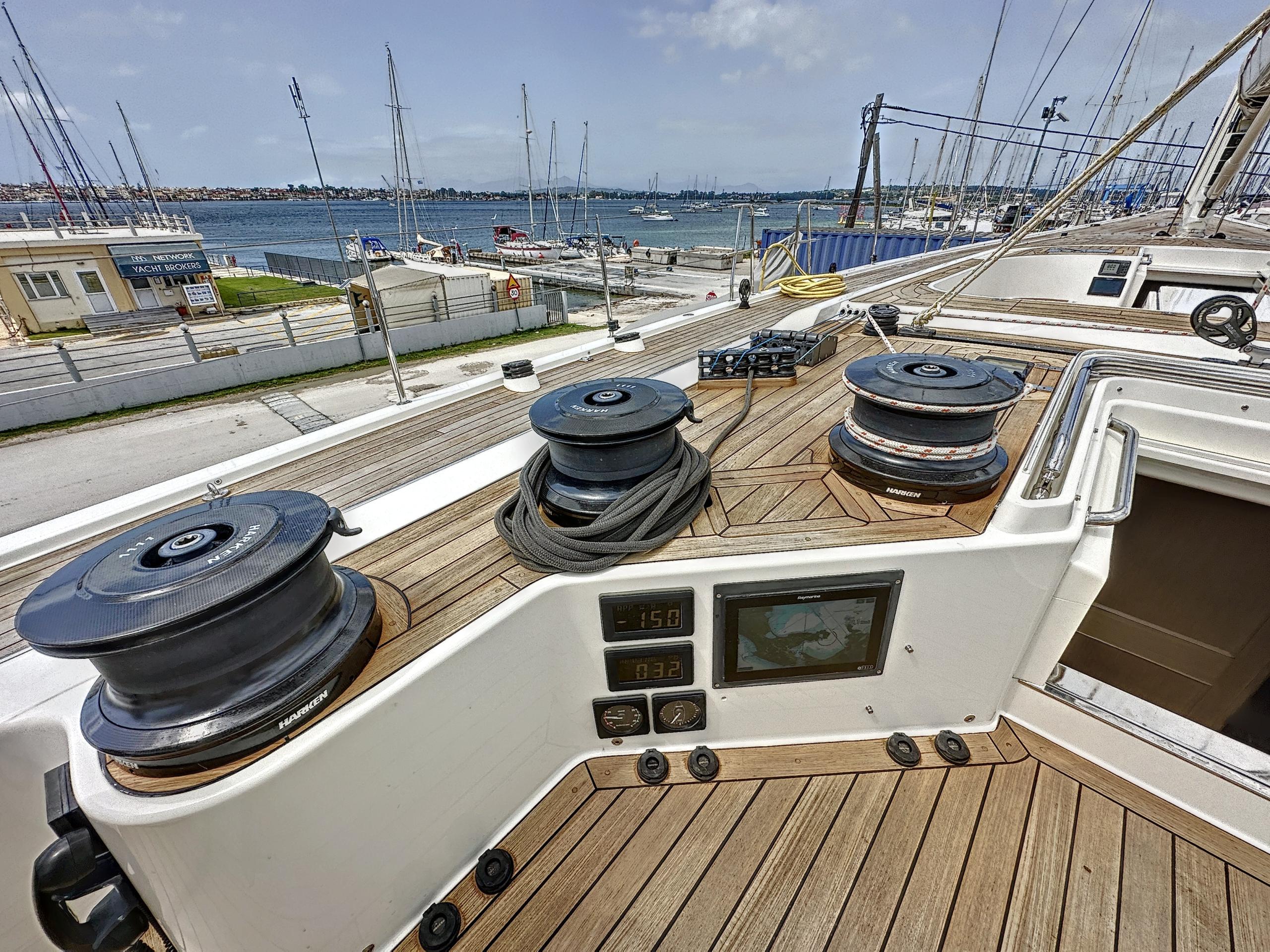

• 6x Harken B1111 electric carbon winches

Sails:

• Genoa - 109 sqm.
• Mainsail - 148 sqm.
• 2 x Battened mainsail.
• 2 x Battened genoas – 1 x winter and 1 x summer.
• Furling staysail.
• Carabiners staysail.
• ‘K’ mainsail.
• Storm staysail
• Gennaker 160% drifter.
• All principal sails in millennium laminate, single piece construction baked at 1200 in carbon and kevlar, including drifters.

Safety Equipment

• Jotron EPIRB + radar transponder
• MOM and various other equipment
• 3x Large CO2 classical bottles automatically working
• Various 2kg extinguishers
